MDF-MSF-Series-Mini-Screen-Filter

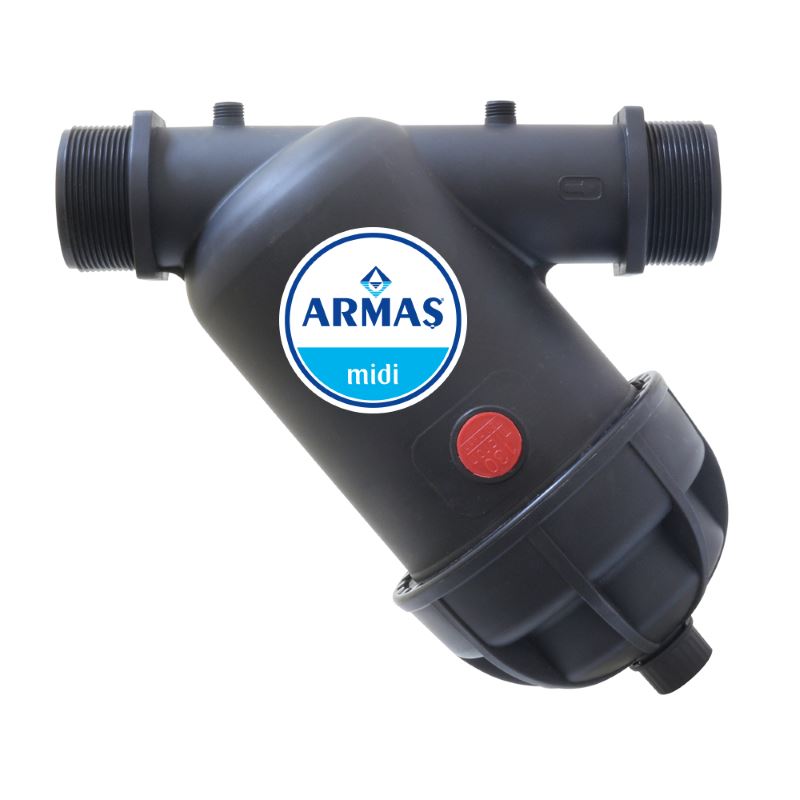

Mini Plastic Screen Filters

Manufacturer: Armas Valves & Filters

Be the first to review this product

Body Material	:	Plastic
Internal Material	:	PP – PRGF
Maximum Working Pressure	:	8 bar
Maximum Working Temperature	:	60℃
The Filtration Sensitivity	:	130 micron
Cartridge	:	Screen
Made in	:	Turkey

Manufacturer part number: MSF

* Size

3/4" (20 mm)
1" (25 mm)
1 1/2" (40 mm)
2" (50 mm)

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

Download Manual FIlters Catalogue

Technical Specifications

		mm	inch	mm	mm	mm	inch	inch	m³/h	cm²	kg
	Product Code	D		D1	H	K	M	T	Flow Rate	Filter Surface	Weight
	MSF 3/4	20	3/4"	95	165	340	1/4”	1/2”	3	116	0.25
	MSF 1	25	1"	95	165	340	1/4”	1/2”	5	116	0.25
	MSF 3	31	1 1/4"	145	250	340	1/4”	1/2”	8	280	0.86
	MSF 4	38	1 1/2"	145	250	340	1/4”	1/2”	10	280	0.8
	MSF 5	50	2"	145	250	340	1/4”	1/2”	12	280	0.836

Code	Size (Inch)	Filtr. Area (cm²)	Capacity (m³/h)
MSF1	¾"	115	3
MSF2	1"	115	5
MSF3	1¼"	275	8
MSF4	1½"	275	10
MSF5	2"	275	12
