Hydrocyclone Sand Separator

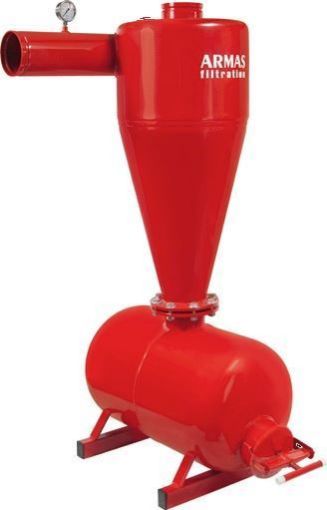

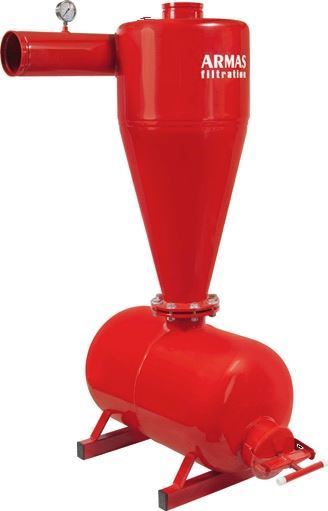

ARMAS HYDROCYCLONE (SAND SEPARATOR)

APPLICATIONS

• Filtration of reserve water such as deep well
• Filtration of water containing sand, gravel or particles heavier than water Preliminary filtration of gravel, Disc and mesh filters
• Agricultural drip and micro-irrigation systems
• Separation of solid particles larger than mesh diameter of 200.

FEATURES

• It provides ease of use and of maintenance due to simple structure.
• Pre-painting phosphorization is performed for maximum resistance against corrosion.
• It has long economic life based on Epoxy – Polyester coating.
• It operates completely based on cyclone principle
• It performs filtration (separation) process with minimum pressure loss.
• Single or modular systems can be used for various application fields with different diameters. Two different models are available including manual and automatic.
• Automatic models can perform self-cleaning process without any disruption in water supply.

Armas 2000 series hydrocyclones are designed in simple structure to be used in the filtration of well water or other water sources containing sand, gravel or particles heavier than the water. Due to simple structure, it is more economic and easy to use relative to other sand separators. Armas hydrocyclones causes minimum pressure loss in ltration systems and therefore, they operate at maximum efficiency. Armas 2000 series hydrocyclones, used as primary fitering element in filtration systems, are provided in single or modular forms which ensure manual or fully automatic cleaning process.

In order to get a regular filtration in Armas 2000 series hydrocyclones, collection container should be regularly monitored and cleaned depending on the water quality. Based on the application type, hydrocyclones are provided in to forms, including manual and automatic, to the users. It is recommended that users prefer automatic model ensuring regular monitoring and cleaning of collection container.

OPERATING PRINCIPLE Armas 2000 series hydrocyclones is a separator removing particles heavier than the water before they enter into the system. It is consisted of two main parts including the body and collection container. Water containing particles heavier than the water enters into cylindrical wall found on the body of the hydrocyclone in tangential manner. Water reaches a particular speed in the cylindrical wall and thus, it creates centrifugal force. Due to this centrifugal power, solid particles heavier than water fall down from narrowing conic part of the hydrocyclone and trapped in the collection container. While solid particles heavier than water fall down to collection container due to centrifugal force, clean water free from particles is supplied to the system via outlet pipe. Water reaches desired speed on cylindrical wall due to perfect cylindrical wall and conical body design of the Armas¸ 2000 series hydrocyclone and thus, water increases efficiency of the filtration as it creates a cycloid orbit.

Download Product Catalogue

	Part No	Part Name	Material
	1	Cylindrical Wall	ST37-2 (DIN 17100)
	2	Conic Body	ST37-2 (DIN 17100)
	3	Inlet	ST37-2 (DIN 17100)
	4	Outlet	ST37-2 (DIN 17100)
	5	Flange O-Ring	NBR/EPDM
	6	Collection Container	ST37-2 (DIN 17100)
	7	Drainage Valve	GG25 / GGG40
	8	Nut	8.8JS-500 STEEL
	9	Bolt	8.8JS-500 STEEL



Available models and recommended flow rates



	Model	ØA		ØD		H		L		Flow Rate		Weight
		inch	mm	inch	mm	inch	mm	inch	mm	m3/h	gpm	kg	lbs
	2050	2"	50	8.6"	220	43.3"	1100	39.4"	1000	14-18	3.9-5	20	44
	2065	2.5"	65	8.6"	220	43.3"	1100	39.4"	1000	24-30	6.6-8.3	24	53
	2080	3"	80	11.8"	300	56"	1420	49.6"	1260	45-65	12.5-18	28	62
	2100	4"	100	11.8"	300	56"	1420	49.6"	1260	70-95	19.4-26.4	60	132
	2125	5"	125	15.7"	400	63"	1600	55.5"	1410	105-145	29.2-40	80	176
	2150	6"	150	15.7"	400	63"	1650	56.7"	1440	120-165	33.3-45.8	82	180
	2200	8"	200	25.2"	640	82.6"	2100	69.7"	1770	200-250	55.5-69.4	240	528



Head Loss Chart & Sample Application
