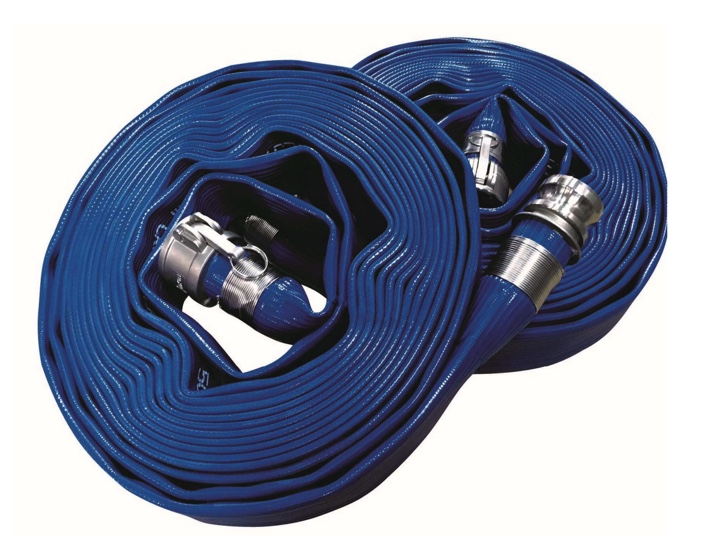

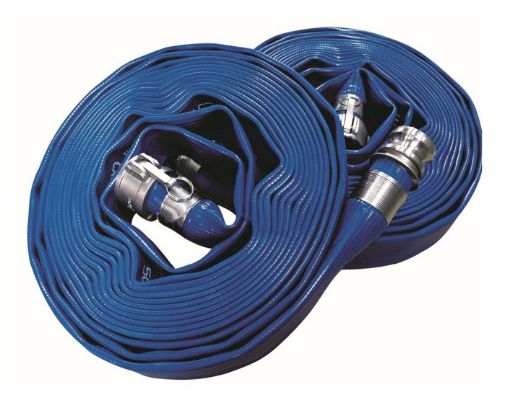

Crusader Aqualine heavy duty high pressure potable water bypass layflat hose-IrriFinder

High Quality Potable Water Layflat Hose

Aqualine^™ is a high quality lay flat hose for use with potable water. It is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with potable water-approved polyurethane. This flexible hose alsohas good resistance to abrasion and can withstand moderate traffic.

Aqualine^™ is a lightweight and low-volume coil hose suitable for long distance water transportation. The polyester woven jacket gives the bypass hose its high bursting feature and the polyurethane cover and liner not only protect the hose against abrasion damage but is also UV stabilised for prolonged outdoor use. The unique design of Aqualine^™ renders the hose not only extremely tough and durable, but guarantees ease of handling and roll up/storage.

Aqualine^™ can form an integral part of a complete temporary water bypass system for uninterrupted drinking water supply so that mains renewal or pipe works can be carried out without any interruption to homes and businesses. Aqualine^™ bypass hose is also ideal for large scale civil works, mining projects and offshore work.

It is typically rolled out as a temporary water supply system while the utility carries out pipeline refurbishment works. The hose is usually cut into 9m lengths and a T-piece coupling is attached at each end. Customers can be connected from these outlets to the main line, while pipe renewal or refurbishment takes place.

Aqualine^™ features including:

Long distance water pumping
Low coil volume for easy handling
High pressure
High abrasion resistance
UV stabilised
Australian Standard AS 4020 Potable Water Approved
Bypass hose for mains renewal
Compact and transportable for emergency water connections
Water truck hose
12 months warranty
Has a high pressure rating and can be rolled up flat
500m can easily be rolled up onto a drum and deployed quickly

It is mainly used for:

Temporary water bypass
Large scale civil works
Rapid connection for burst or emergency use
Temporary supply lines
Pumping water over long distances (long distance water transportation)
General discharge

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure Bar	Burst Pressure Bar	Burst PressurePSI	Avg. Single Wall Thickness(mm)	Weight per Metre(kg)
40	1½”	20	40	580	2.2	0.50
51	2"	20	40	580	2.4	0.60
64	2½”	20	40	580	2.6	0.65
76	3"	20	40	580	2.7	0.80
102	4"	20	40	580	3.2	1.00
152	6"	17	35	507	4.0	1.80
