Angus Dragmaster Heavy Duty Agricultural Layflat Hoses-IrriFinder

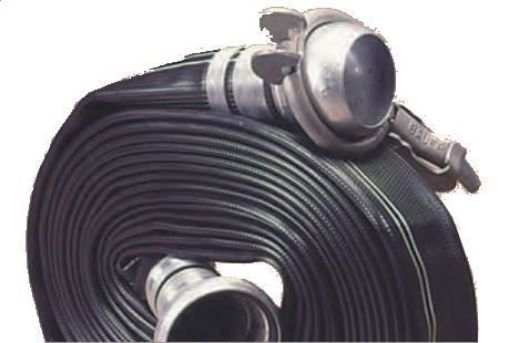

Dragmaster Agricultural Layflat Hose

Agricultural Slurry Disposal
Industrial Sludge Disposal to Land
Dirty Water Distribution Systems
Non-Potable Water Transfer
Irrigation Systems

A high performance flexible layflat hose for all types of agricultural use including irrigation, sludge, slurry, and dirty water disposal operations.

Easy to Store & Transport
Lightweight, compact and excellent coilability for economical storage. More flexible than current plastic hoses in the market for smoother coiling and easier handling.

Fast Deployment & Retrieval
Long continuous lengths can be quickly deployed and retrieved using light duty reels.

Low Operating Costs
Unique textile construction for minimum pressure loss and maximum hydraulic efficiency. Superior kink resistance at low pressure maintains maximum hydraulic efficiency. Suitable for continuous operation at high pressure.

Long Service Life
Designed for long service life on a wide variety of ground conditions with minimal maintenance.

Dragmaster Features:

Tough and durable rubber cover with exceptional resistance to abrasion and cutting. Advanced black rubber compound for maximum resistance to agricultural chemicals, ozone, UV, and weathering. Resistant to microbiological attack from untreated and treated sludges and slurries.
Features unique “through-the-weave” one piece construction comprising a circular woven high tenacity yarn reinforcement totally encapsulated in a tough vulcanised rubber cover and lining. The integral woven construction imparts extremely high tensile strength to withstand all practical loading conditions.
Manufactured in compliance with BS EN ISO 9001:2000 quality management systems. Raw materials, components, and finished products are rigorously tested and inspected to ensure excellent product reliability.
Meets ASAE 394.
Operating temperature: -20 to +70 °C

It is mainly used for:

Travelling irrigators and boom type irrigation equipment
Drag hose for farm use
Dewatering in mines
High pressure wash–down hose
Industrial hose for use with certain oils & chemicals
Heavy duty farm hose
Temporary bypass hose
Air hose

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure Bar	Burst Pressure Bar	Burst PressurePSI	Tensile Load Tonnes	Avg. Single Wall Thickness(mm)	Weight per Metre(kg)
51	2”	18	36	525	2.8	2.3	0.46
64	2½″	18	36	525	3.1	2.3	0.53
76	3″	18	36	525	4.5	3.1	0.97
89	3½”	17.5	35	510	5.4	3.4	1.14
102	4″	17.5	35	510	7.8	3.7	1.44
114	4½″	15	30	435	9.9	3.8	1.66
127	5”	15	30	435	11.3	4.1	1.98
152	6″	15	30	435	16.5	4.1	2.3
